Columbia 41 Specifications

Manufactured by:

Columbia Sailing Yachts

Whittaker Corporation

The C-41 was a motorsailor designed by Bill Tripp and Blaine Seley. It was available with a standard keel or a shoal draft keel, and as a sloop or a ketch. The following specifications are from a Columbia brochure:

                    Standard          Shoal
                      Keel            Draft

L.O.A.                40' 6"          40' 6"
L.W.L                 32' 0"          32' 2"
Beam                  11' 3"          11' 3"
Draft                  6' 4"           4'11"
Sail Area
     Sloop                  638 sq.ft.
     Ketch                  661 sq.ft.
Displacement      20,500 lbs.     21,700 lbs.
Ballast            8,500 lbs.      9,700 lbs.
Vertical
  Clearance                   50' 5"
Water                        100 gal.
Fuel                         110 gal.
Berths              4 (plus custom arrangements
                       to sleep eight)
Optional Power      50 HP Perkins 4-107 Diesel
Designers           William H. Tripp/Blaine Seeley

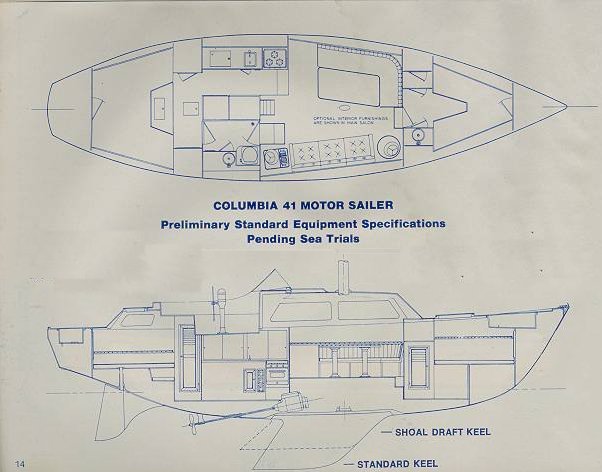

A C-41 diagram.
